Garage Door Spring Repair in Frisco, TX
The loudest failure a garage door has, and the call we run most often in Frisco. Springs go back in matched sets, wound to the turn count your door needs.
What Garage Door Spring Repair Costs in Frisco
Most Frisco homeowners pay $195 to $375 for one torsion spring and $295 to $525 for a matched pair. Where you land depends on door weight, the cycle rating going on, and whether the drums, bearings or cables are worn out alongside it.
| Job | Typical range | Notes |
|---|---|---|
| Single torsion spring, 10,000 cycle | $195 to $295 | Light single-car doors and most uninsulated doubles |
| Single torsion spring, 25,000 cycle upgrade | $265 to $375 | Heavier gauge wire, roughly double the service life |
| Matched pair of torsion springs | $295 to $525 | Standard on wide insulated doors, both replaced together |
| Extension springs, pair, with safety cables | $185 to $315 | Older single-car setups, safety cables fitted if missing |
| Springs plus cables and drums | $395 to $650 | When the drums are grooved or the cables have frayed |
| End bearing plates or center bearing | $45 to $110 each | Added to a spring job, seldom worth a visit alone |
Every figure is confirmed at the house before work starts, and nothing is unbolted until you approve a fixed number.
How Do You Know It Is the Spring and Not the Opener?
A broken spring announces itself with a bang like a firework, usually overnight or on the first open of the day. After that the door feels like it weighs 200 pounds, the opener strains and quits, and a finger-wide gap shows in the coil above the door.
Run this check before you call. With the door fully closed, pull the red release cord, lift by hand to waist height and let go. A healthy door hovers. A broken one drops or will not move past a foot.
- A gap of one to three inches in the spring on the torsion tube above the door.
- The opener hums, strains, then reverses about six inches off the floor.
- One side rises and the other stays put, which means the second spring is still holding.
If the opener is fine and the door is still heavy, the counterbalance has failed and no force setting will fix it. Running the opener through a broken spring is how top sections bend and how a lift cable jumps its drum.
Torsion or Extension: Which Springs Are on Your Door?

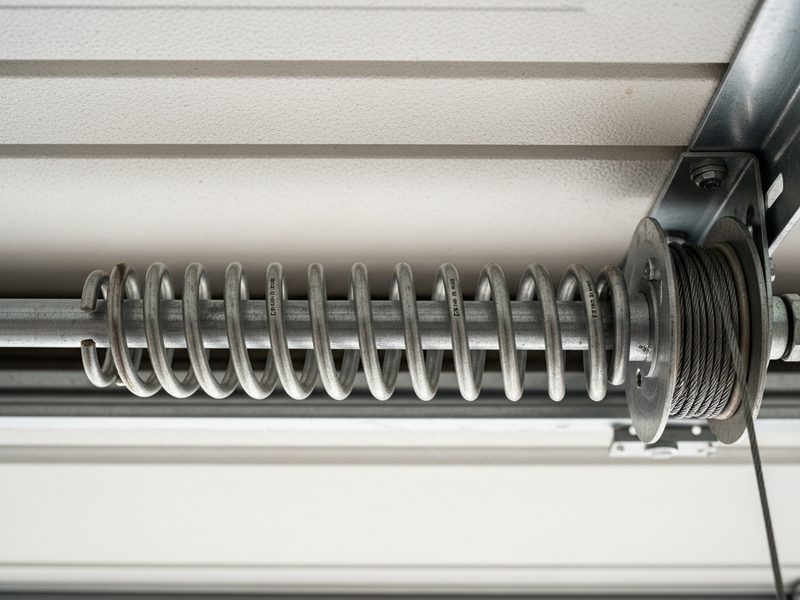

Almost every Frisco house runs torsion springs on a steel tube above the opening. Extension springs, the long thin ones along the horizontal tracks, show up on older single-car and detached garages.
| Torsion | Extension | |
|---|---|---|
| Where it sits | On a shaft above the door opening | Stretched along the horizontal tracks, one each side |
| Typical life | 7 to 12 years at 10,000 cycles | 5 to 9 years, sooner if the pulleys seize |
| How it fails | Snaps with a loud bang, door goes dead heavy | Stretches or breaks, door pulls to one side |
| Safety extras | Contained on the tube, no cable needed | Safety cables must run through the spring |
| What it costs here | $195 to $525 depending on count and rating | $185 to $315 for the pair, cables included |
Extension springs with no safety cable threaded through them are worth sorting whatever else you do. One that lets go turns into a whip across the garage.
Why Frisco Springs Give Out at Seven to Ten Years
A spring is rated in cycles, not years, and one cycle is one open and one close. Builder-grade springs are 10,000-cycle parts. A family going in and out five or six times a day burns 2,000 cycles a year, which lands the door at the end of its rated life around year seven.
North Texas weather trims that further. Summer heat bakes the light oil off the coils, and the hard freezes that arrive every few winters make the steel less forgiving right when the door is heaviest. Springs rarely break in mild weather. They go on the first cold morning.
- Insulated doors weigh more than the builder's base model, so a replacement spring has to be sized up rather than matched.
- A 25,000-cycle spring costs a little more and normally lasts two to three times as long on the same door.
What Happens During the Repair

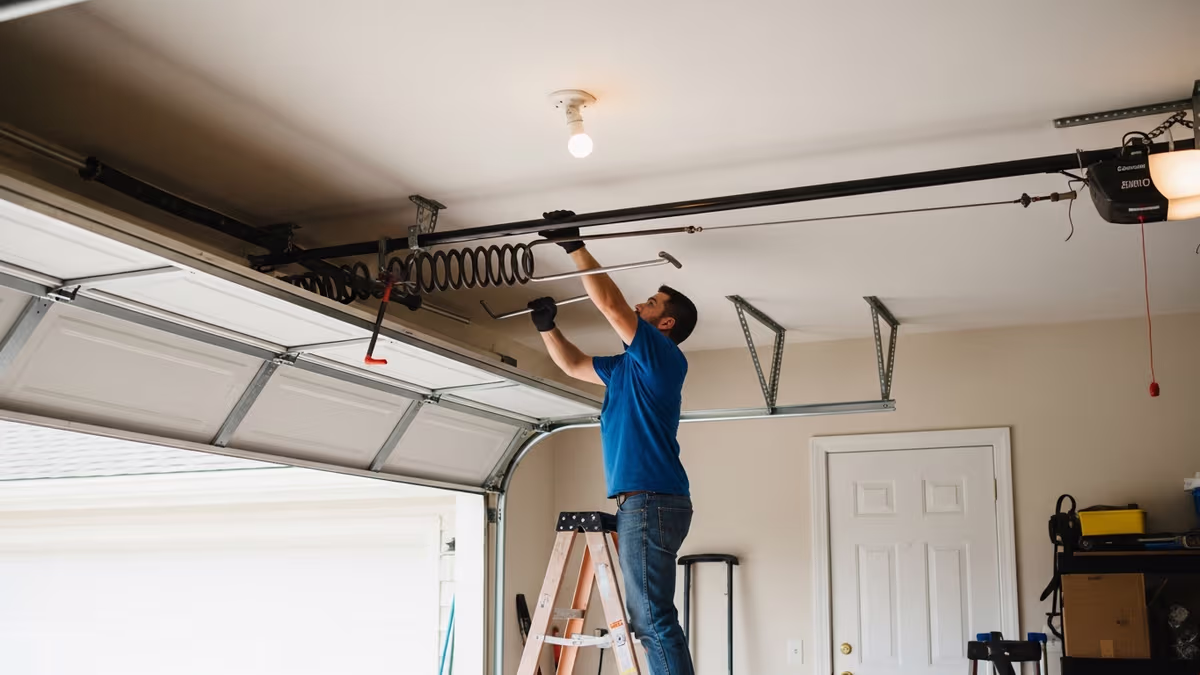

A standard spring replacement takes 60 to 90 minutes. We measure wire size, inside diameter and length, wind the new spring to the correct turn count, replace worn drums or bearings, then balance the door by hand and reset the opener force and travel limits.
Measure first
Wire gauge, coil diameter and length come off the old spring. Guess any of the three and the door runs heavy or floats.
10 minutesSwap the tension parts
Old spring off the tube, new one on, drums checked for grooving and bearings spun by hand.
30 minutesWind and balance
Wound to the turn count that matches door height, then tested at waist height. A correctly balanced door stays where you leave it.
20 minutesReset the opener
Travel limits and force back to spec, auto-reverse tested against a two by four on the floor.
10 minutes
Why this one is not a DIY job
There is enough wound-up force above a two-car door to put someone in hospital, and it comes out sideways when a bar slips. Hardware store springs are rarely the right wire size, and both drums have to end up at matching tension or the door runs crooked and chews its tracks. Rollers, weather seal and remote batteries are fine to do yourself. This one is not.
The same crew handles doors that came off the track after a spring let go, and a burned out opener becomes an opener repair on the same visit. Everything else sits under our same-day garage door repair in Frisco.
Spring Questions We Get From Frisco Callers
How long does a garage door spring replacement take?
Between 60 and 90 minutes for a standard door, from the van door opening to the final balance test. A pair on a wide insulated door with worn drums and cables can run to two hours. We carry the common wire sizes on the van, so a Frisco spring job almost never needs a second visit or a parts order.
If one spring snapped, does its partner need doing too?
On a door that runs two of them, yes. They were wound on the same afternoon and have carried the same number of cycles, so the survivor is normally weeks or months behind. Doing both now costs less than paying for a second visit later, and an evenly balanced door is easier on the opener and the track.
Can I open my garage door with a broken spring?
Only in an emergency, and only with help. The counterbalance is gone, so you are lifting the full 150 to 250 pounds by hand. Pull the red release cord, lift with someone on the other side and clamp the track above a roller. Do not run the opener, which bends top sections and pulls cables off drums.
What is a 25,000-cycle spring and is it worth it?
It is wound from heavier wire, so it survives more open and close cycles. On a Frisco door used five or six times a day, the standard 10,000-cycle part is spent in about seven years while the upgrade runs into its teens. The extra cost is small next to a second call-out.
What if the cables came off when the spring broke?
That happens often, because the door drops fast and the drums unwind. Rethreading the cables and resetting the drums is part of the same visit, quoted with the spring work rather than added afterwards.
