Garage Door Cable Repair in Frisco, TX
A cable off its drum drops one corner of the door and puts the whole weight on the other side. We reset both cables to matched tension, not just the one that failed.
What Happens When a Garage Door Cable Snaps
A lift cable carries half the door's weight up to the drum on its side. When one snaps or unwinds, that corner drops, the door racks in the opening and the other cable takes a load it was never meant to carry. Stop using the door at that point. A racked door is one cycle away from coming off its track.

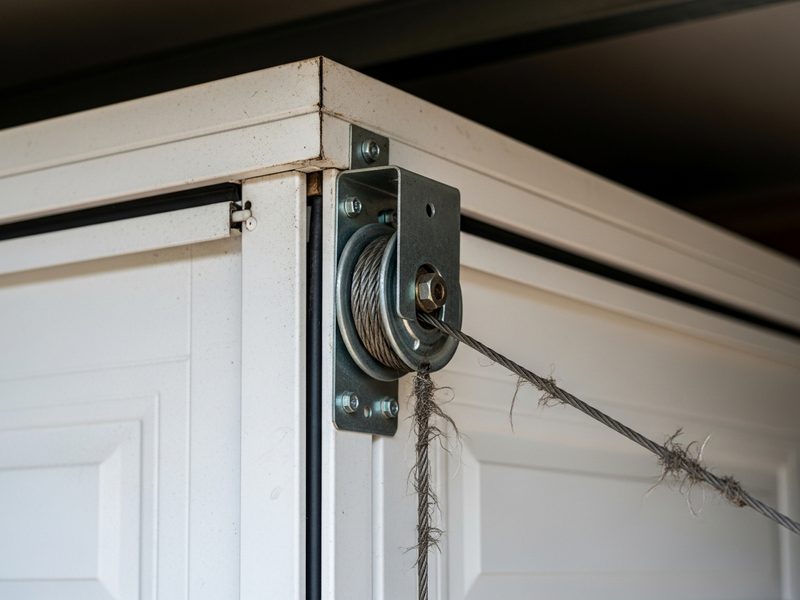

Cables fail in two ways here. They fray strand by strand at the bottom bracket where water and grit collect on the slab, or they jump the drum when a door is run while a spring is broken. The second kind is the one we see most in Frisco, because people try the opener a few more times after the bang.
- One corner of the door sits two to six inches lower than the other.
- Slack cable hanging in a loop beside the vertical track.
- A grinding rattle from the top corner as the drum turns on nothing.
- Rust bleeding down the track from the bottom bracket, a sign the cable end is going.
Never unbolt a bottom bracket to look. It is under full spring tension even when the door is closed, and it is the single most dangerous fixing on a garage door.
Cable Repair Prices in Frisco
A pair of lift cables replaced runs $145 to $265 in Frisco. Add drums at $95 to $185 the pair if the grooves are chewed, and a bottom bracket at $65 to $120 if it has bent. Cables are always replaced in pairs, because a cable that is half worn on one side is fully worn on the other.
| Job | Typical range | When it applies |
|---|---|---|
| Lift cables, replaced as a pair | $145 to $265 | Frayed, snapped or jumped off the drum |
| Cable drums, pair | $95 to $185 | Grooved, cracked or the set screws have chewed the shaft |
| Bottom bracket, each | $65 to $120 | Bent by a door drop or corroded at the slab |
| Cables plus a full retension and balance | $195 to $340 | The usual after a door has racked in the opening |
| Safety cables on extension springs, pair | $75 to $140 | Older doors that never had them fitted |
Cable work almost always uncovers something else, so the technician quotes the whole picture at the house rather than starting cheap and adding to it. If a spring turns out to be the underlying cause, that gets priced as spring replacement in the same visit.
Why Cables Wear Unevenly on Frisco Slabs
Collin County sits on blackland clay, which swells in a wet spring and shrinks hard in a dry August. Slabs move with it, and a garage opening that was square when the house was framed can end up a quarter inch out. That difference goes straight into the cables: one side runs slightly tighter, wears faster and frays first.
You can usually see it before it fails. The gap between the door and the jamb is wider at one side than the other, or the weather seal touches the slab at one end and floats at the other. A cable and drum reset brings both sides back to matched tension, and the door stops fighting itself.
How the Repair Goes

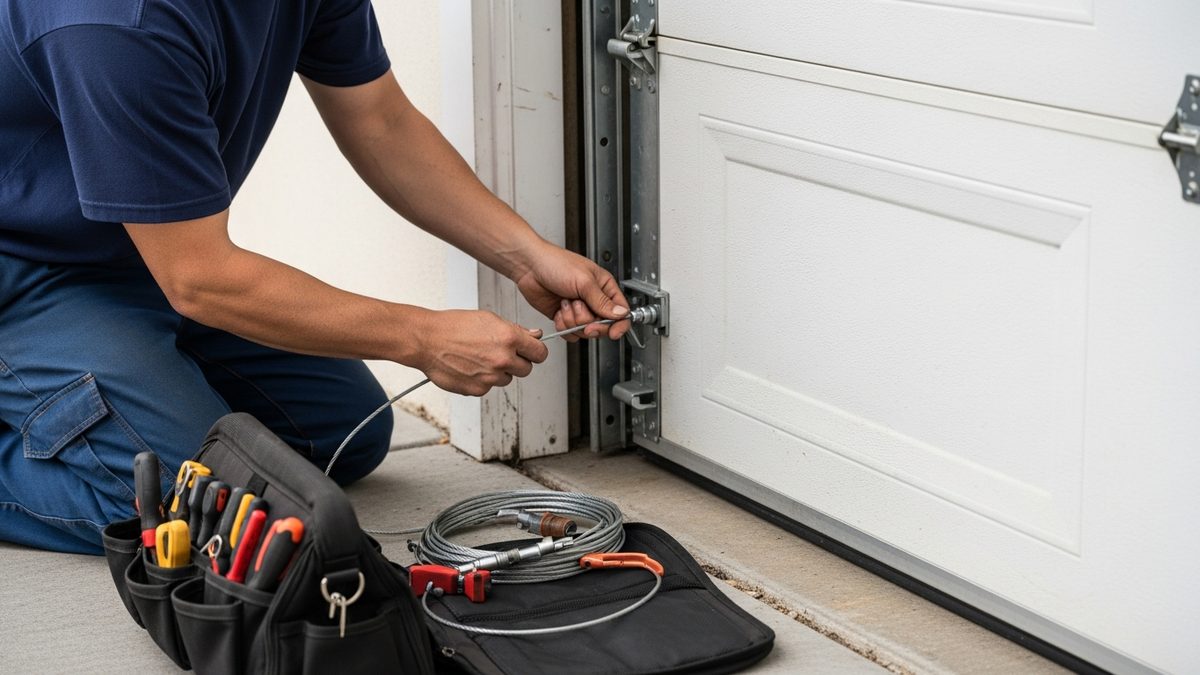

The door gets clamped and supported first, then the spring tension comes off in a controlled way before anything is unbolted. New cables are cut to the door height, seated at the bottom brackets, wound onto both drums to matching tension and locked to the shaft. Then the door is run by hand, checked for level at three heights and cycled under power.
Total time is around an hour for a straightforward pair. If the door came off the track when the cable let go, that is a bigger job and we quote it as off-track repair instead of pretending a cable alone will fix it. We work all four Frisco ZIP codes, and you can check the streets we cover on the Frisco service area page.
Cable Questions We Answer on the Phone
Is it safe to keep using the door after a cable goes?
No. One cable gone means the entire weight hangs from a single point, and the door twists in the opening on every movement. One or two more cycles is usually all it takes to pull the rollers out of the track, which turns a one hour repair into a much bigger one.
Why do both cables get replaced when only one broke?
They were fitted on the same day, they have run the same number of cycles and they have worn the same amount. Replacing one leaves you with a matched pair for about a week. Fitting both also lets us set identical tension on the drums, which is what keeps the door running square.
How much does garage door cable repair cost in Frisco?
A replacement pair runs $145 to $265 installed. Drums add $95 to $185 if they are grooved, and a bent bottom bracket adds $65 to $120. If the cause was a snapped spring, the spring work is quoted alongside it so you see one total rather than a repair that grows.
How long do garage door cables last?
Eight to fifteen years is normal, and they usually go earlier on the side that carries the extra load from an out of square opening. Rust at the bottom bracket is the early warning, because that is where water sits on the slab after a Texas storm.
The cable came off the drum but did not snap. Is that cheaper?
Sometimes, but not always. If the cable is undamaged we can rewind it, though we still check it end to end for kinks, since a cable that has been slack has usually been crushed somewhere. If we can rewind rather than replace, the price drops and we tell you on the spot.
